| ブランド名: | BeLYEnergy |
| モデル番号: | BLY-LPF-48V200AH |
| Moq: | 10PCS |
| 価格: | 交渉可能 |
| 配達時間: | 2~3週間のサンプル; 4~6週間の大量生産 |
| 支払条件: | T/T,L/C,ウェスタンユニオン,マネーグラム |

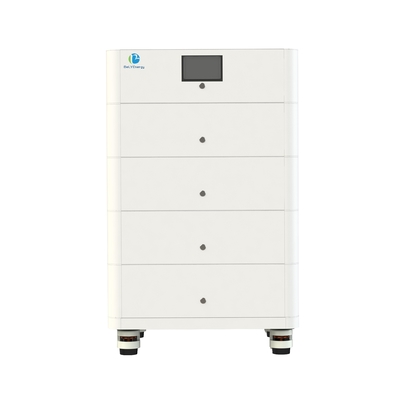

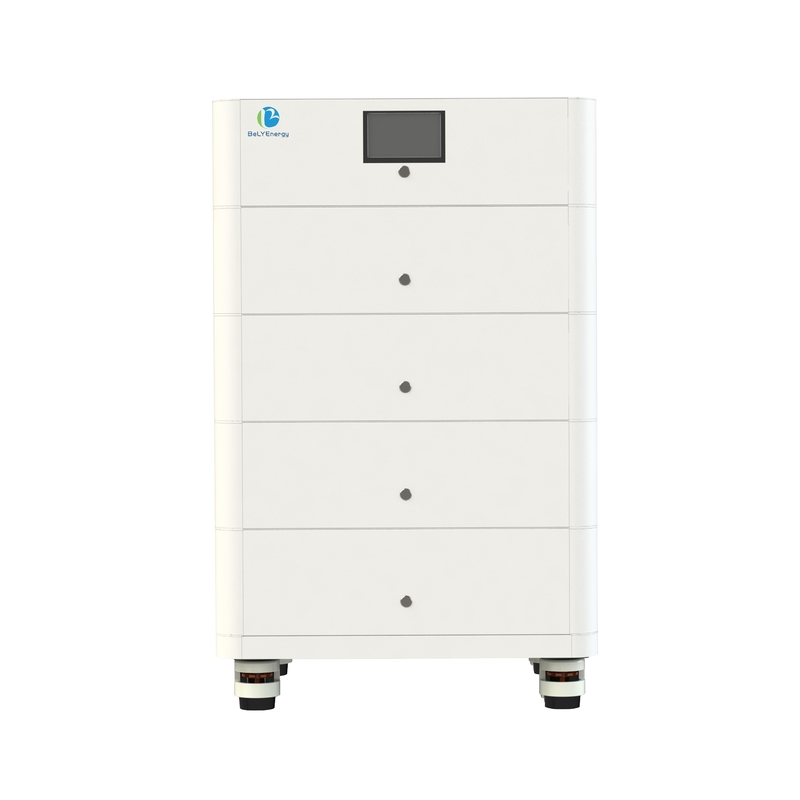

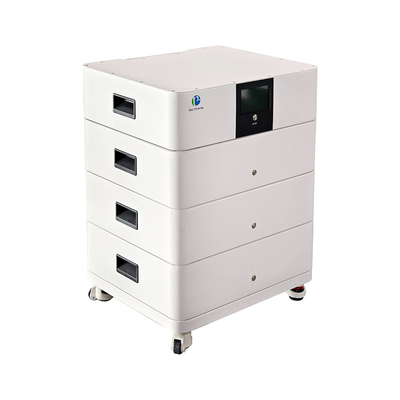

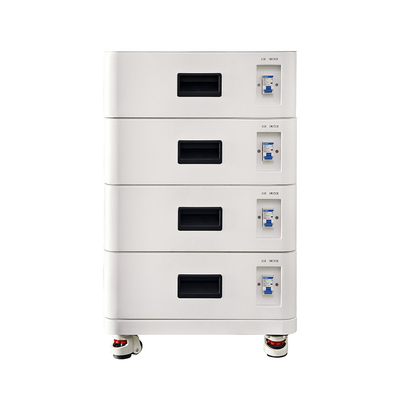

Stackable LiFePO4 Battery --48V200Ah 16S With RS485/CAN Communication With LCD Indicators
BeLY Stackable & Wall Mount Battery is available in capacities of 5kWh, 10kWh, 15kWh and 20kWh etc., which allow you to store
sufficient solar energy to power your home, significantly reduce dependence on the grid and keep home appliance normal running
when the grid goes down.
1. General Information
This specification defines the performance of rechargeable LiFePO4 Stackable home solar storage battery pack BLY-LFP48V100AH manufactured by SHENZHEN BELY ENERGY TECHNOLOGY CO.,LTD, describes the type, performance, technical characteristics, warning and caution of the battery pack.
2. Battery Specification(@ 25±5℃)
| ELECTRICAL SPECIFICATIONS | |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 200Ah |
| Energy | 10240Wh |
| Resistance | ≤ 10mΩ |
| Efficiency | ≥ 99% |
| Self Discharge | ＜3% per Month |
| MECHANICAL SPECIFICATIONS | |
| Dimensions (L x W x H) | L620x W430x H430mm or customized size |
| Weight | 104KG |
| Terminal Type | M8 Terminal |
| Case Material | Metal sheet Case |
| Enclosure Protection | IP20 |
| Cell Type | New Grade A Automotive Prismatic Cells |
| Chemistry | LiFePO4 |
| CHARGE SPECIFICATIONS | |
| Recommended Charge Current | ≤ 200A |
| Maximum Charge Current | 200A |
| DISCHARGE SPECIFICATIONS | |
| Maximum Continuous Discharge Current | 200A |
| Peak Discharge Current | 210A (5S) |
| Under Voltage Protection | 40V |
| Over Charge Voltage Protection | 58.4V |
| Short Circuit Protection | 400 ≤ 500uS |
| Cells Balancing Voltage | 3.5V (Voltage Difference 20mV between each Cells) |
| TEMPERATURE SPECIFICATIONS | |
| Discharge Temperature | -20 to 60℃ |
| Charge Temperature | 0 to 60℃ |
| Storage Tempearture | -10 to 45℃ |
| COMPLIANCE SPECIFICATIONS | |
| Certifications | CE, ROHS, MSDS, UN38.3, DGM, BQB (Battery), UL(Cells) |
| Shipping Classification | UN3480, CLASS 9 |
| Package | UN Carton |
3.Description of LiFePO4 Battery
Lithium - lron - Phosphate (LiFePO4) battery offers a higher charge/discharge cycles, about 6,000 cycles at 100% DOD (depth of discharge). LiFePO4 cathode is intrinsically safer than the LiCo02 or the manganese cathode. We provides a complete line of 12, 24 and 48 volt batteries for use in RV' s, boats, EV' s and off-grid applications and much more. Our wide variety of standard and high performance batteries ensure we have what you need, when you need it.
4. Period of Warranty
The period of warranty is 5 years from the date of shipment. BeLY guarantees to give a replacement in case of battery with defects proven due to manufacturing process instead of the customer abuse and misuse.
5. Application Scenario
ビデオ
ビデオ
ビデオ
|
